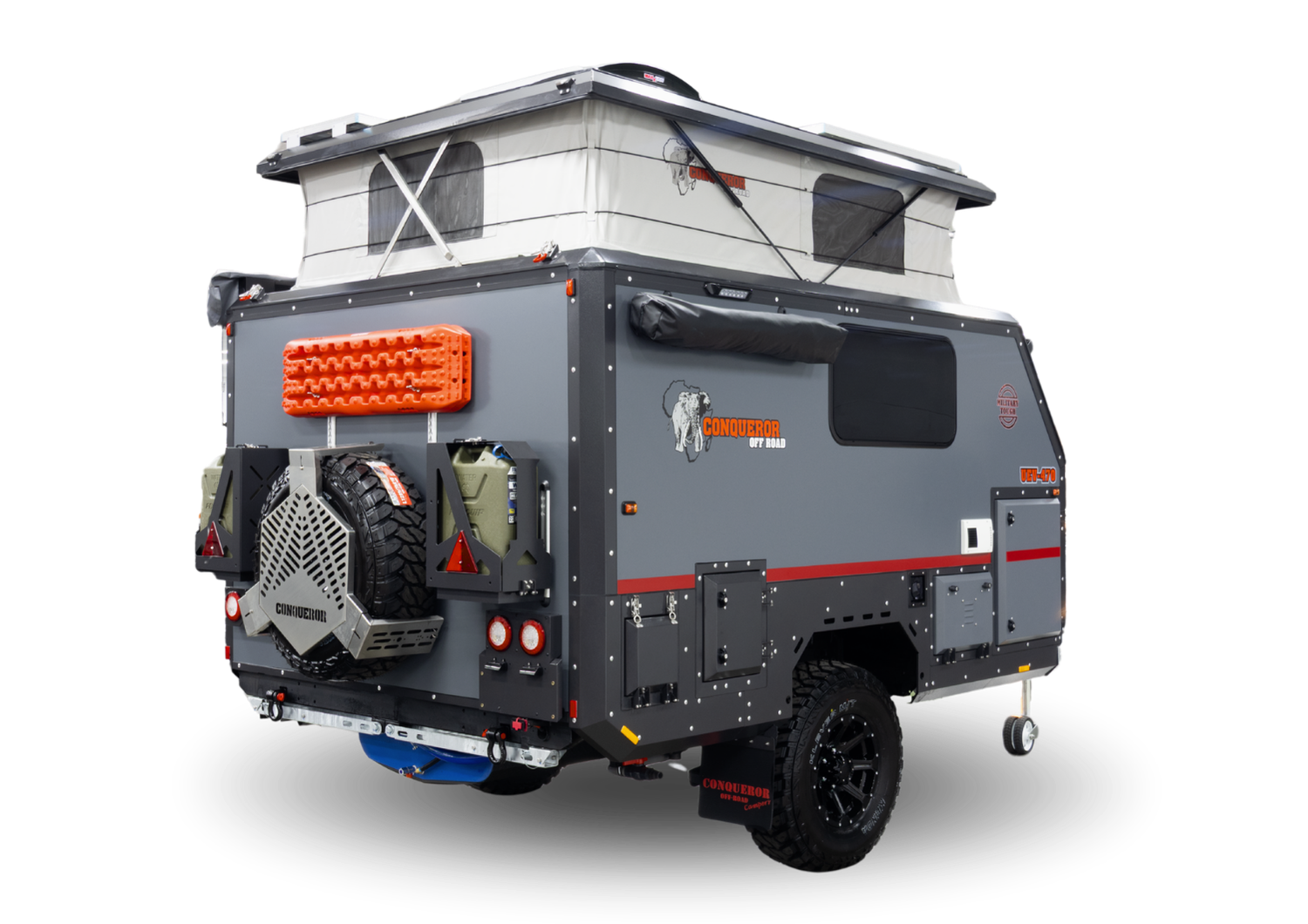

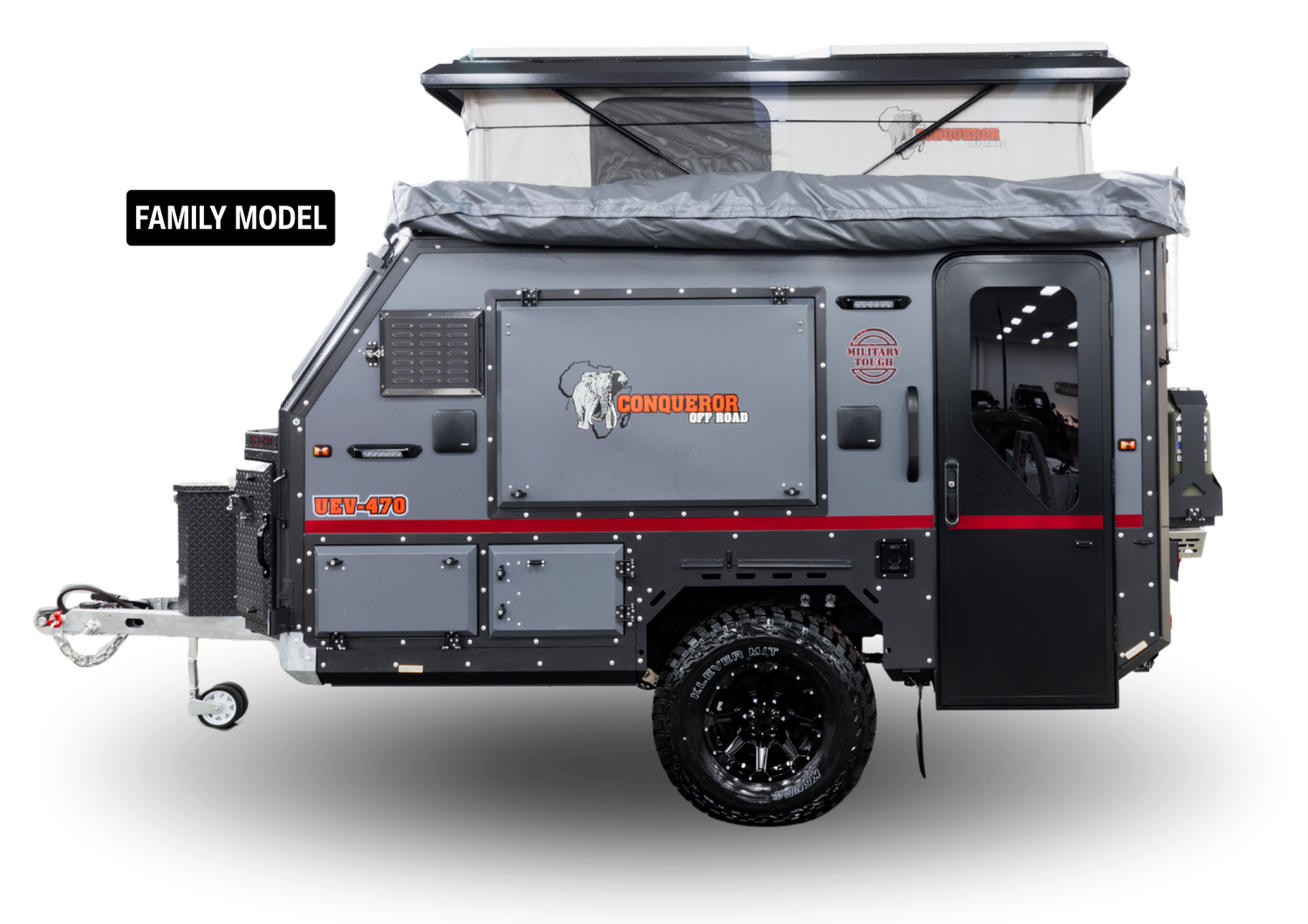

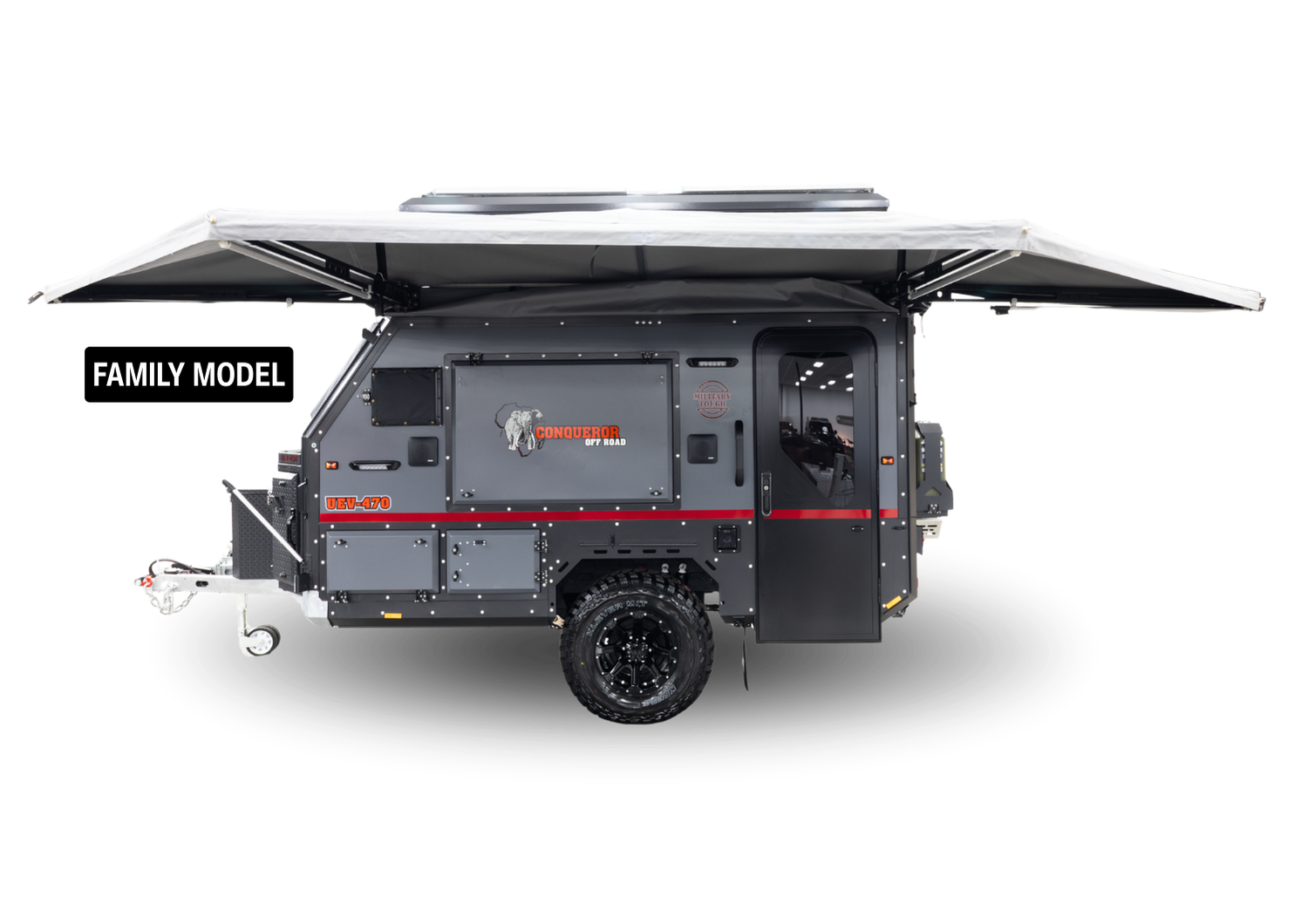

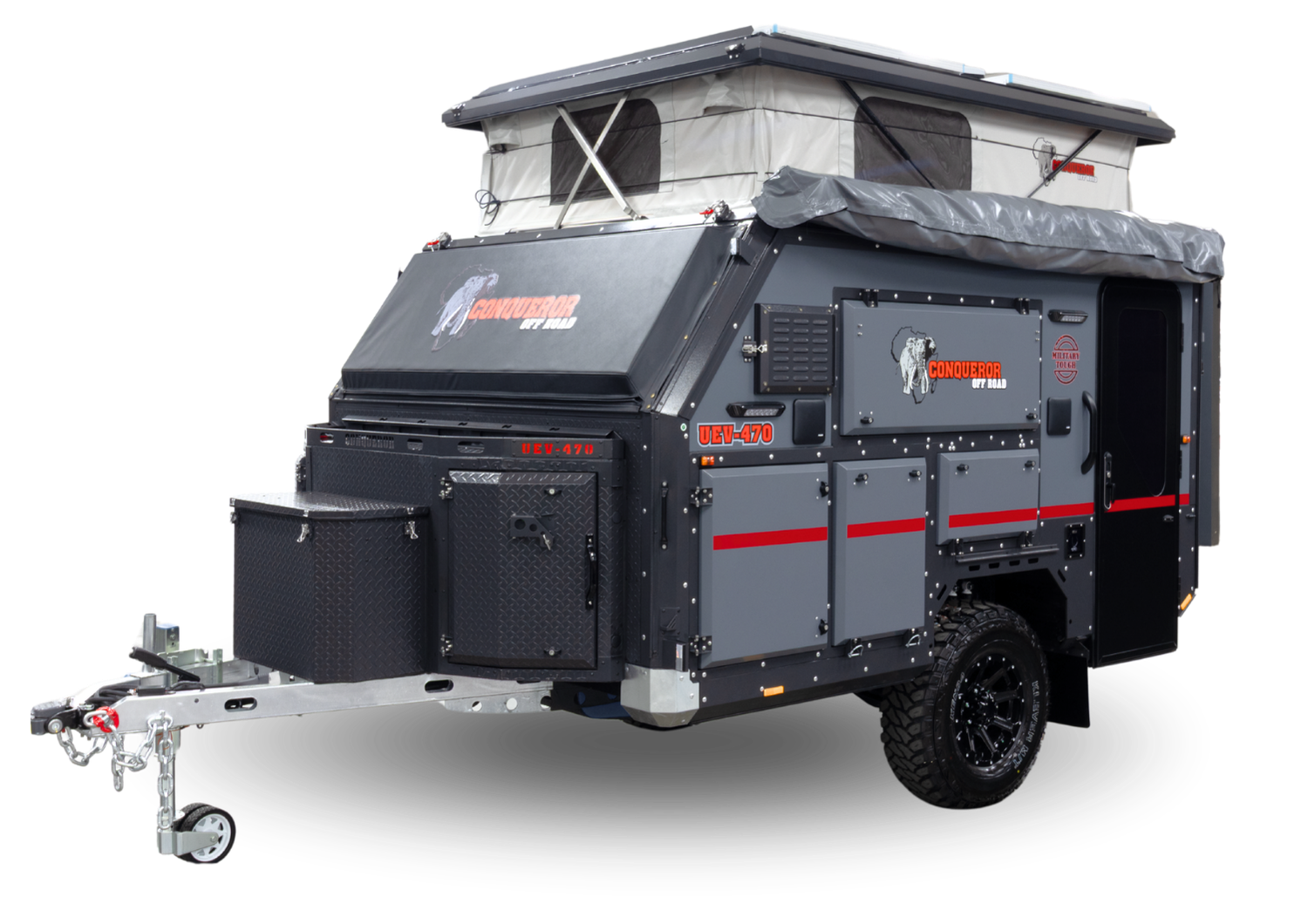

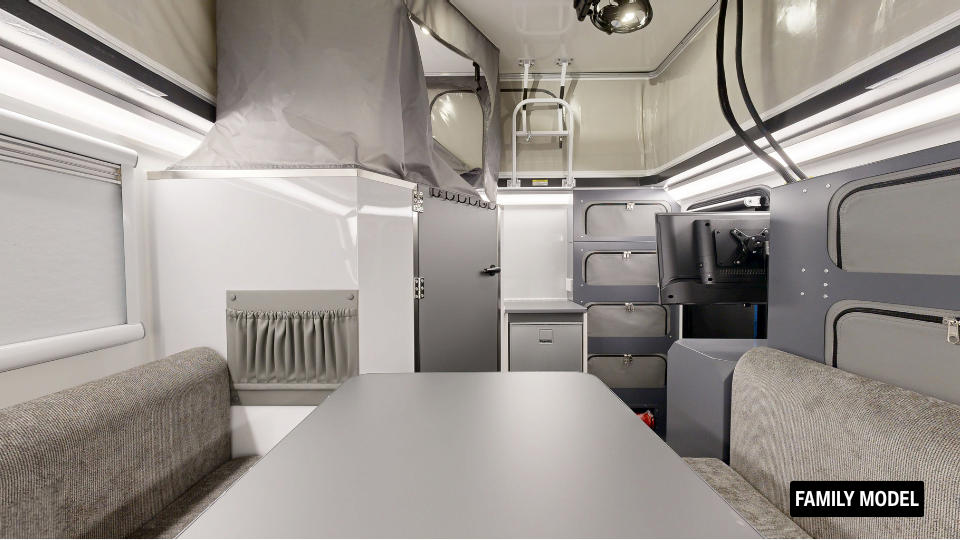

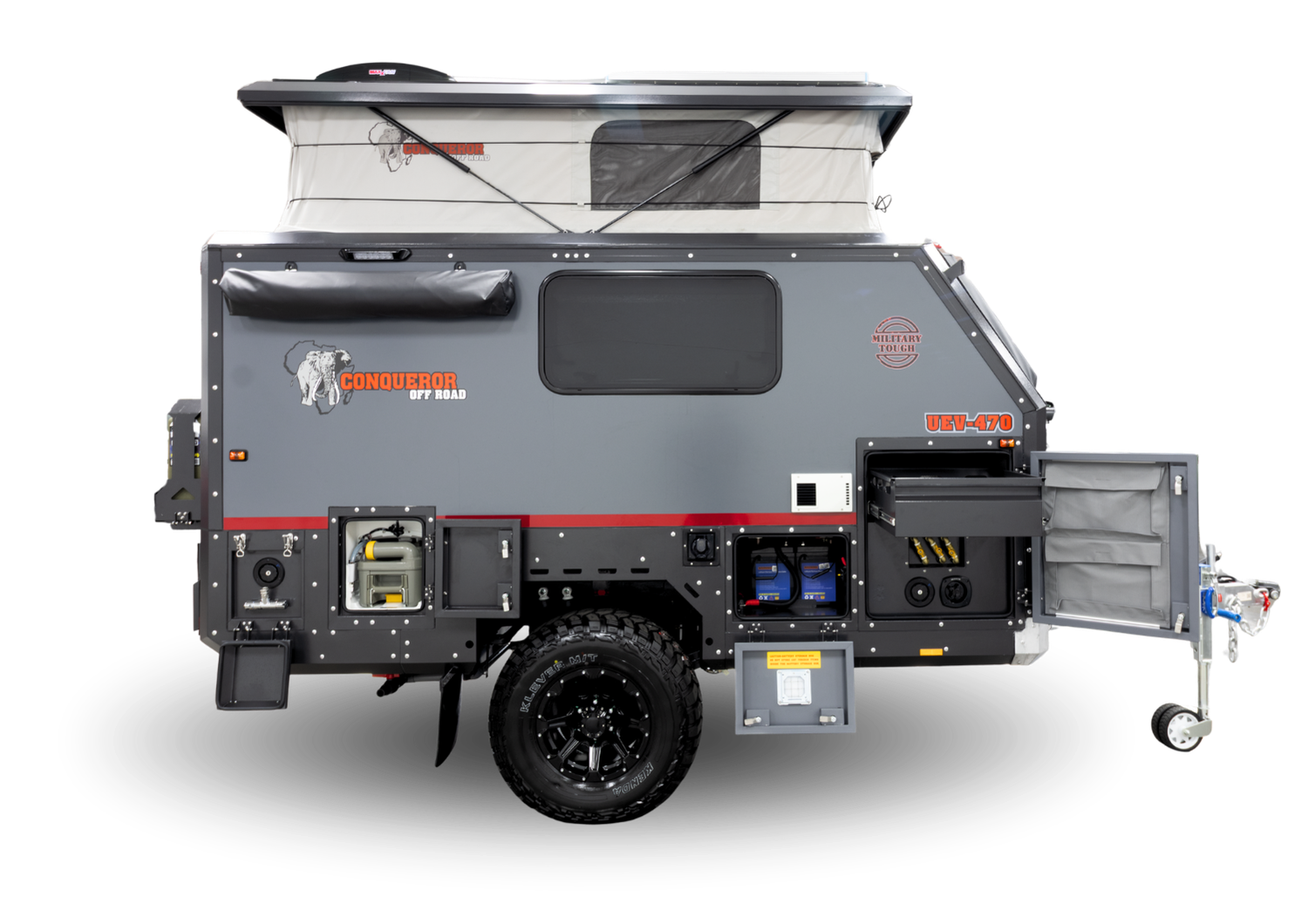

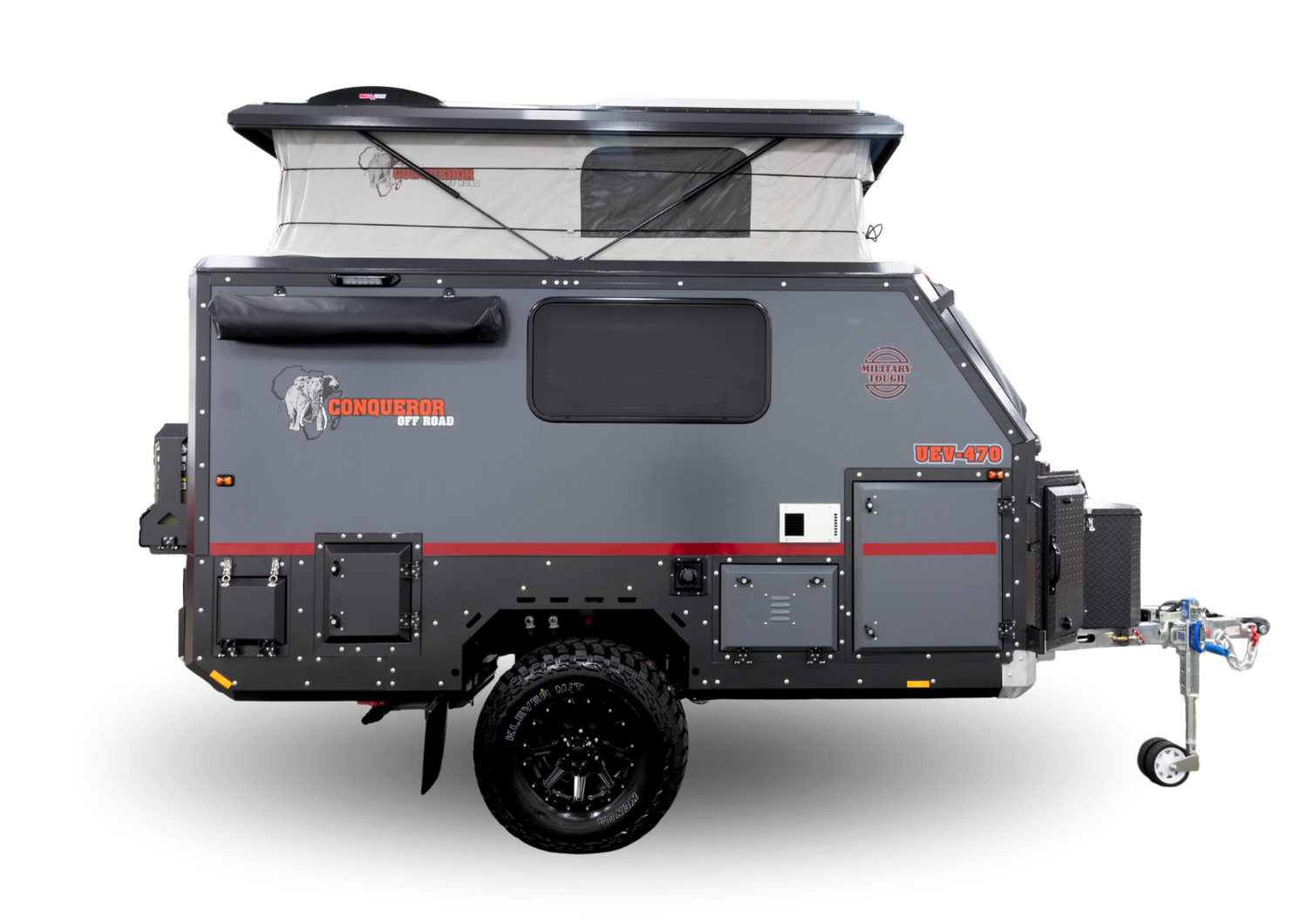

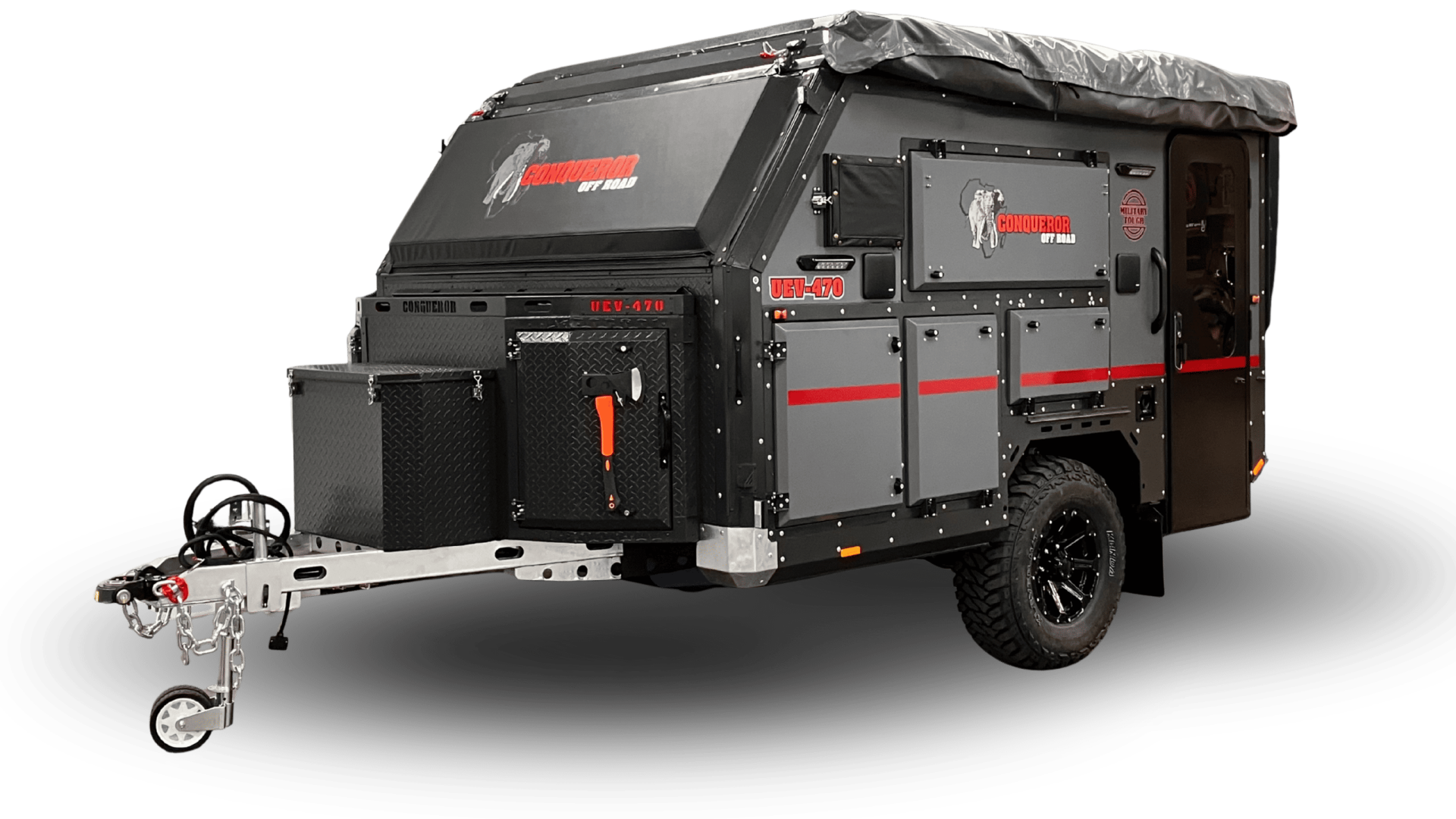

UEV-470
COMPACT OFF ROAD HYBRID CARAVAN
Sleeps
2-4
Tare
1850kg
Length
5m
ATM
2500kg
Water
240L
Ensuite

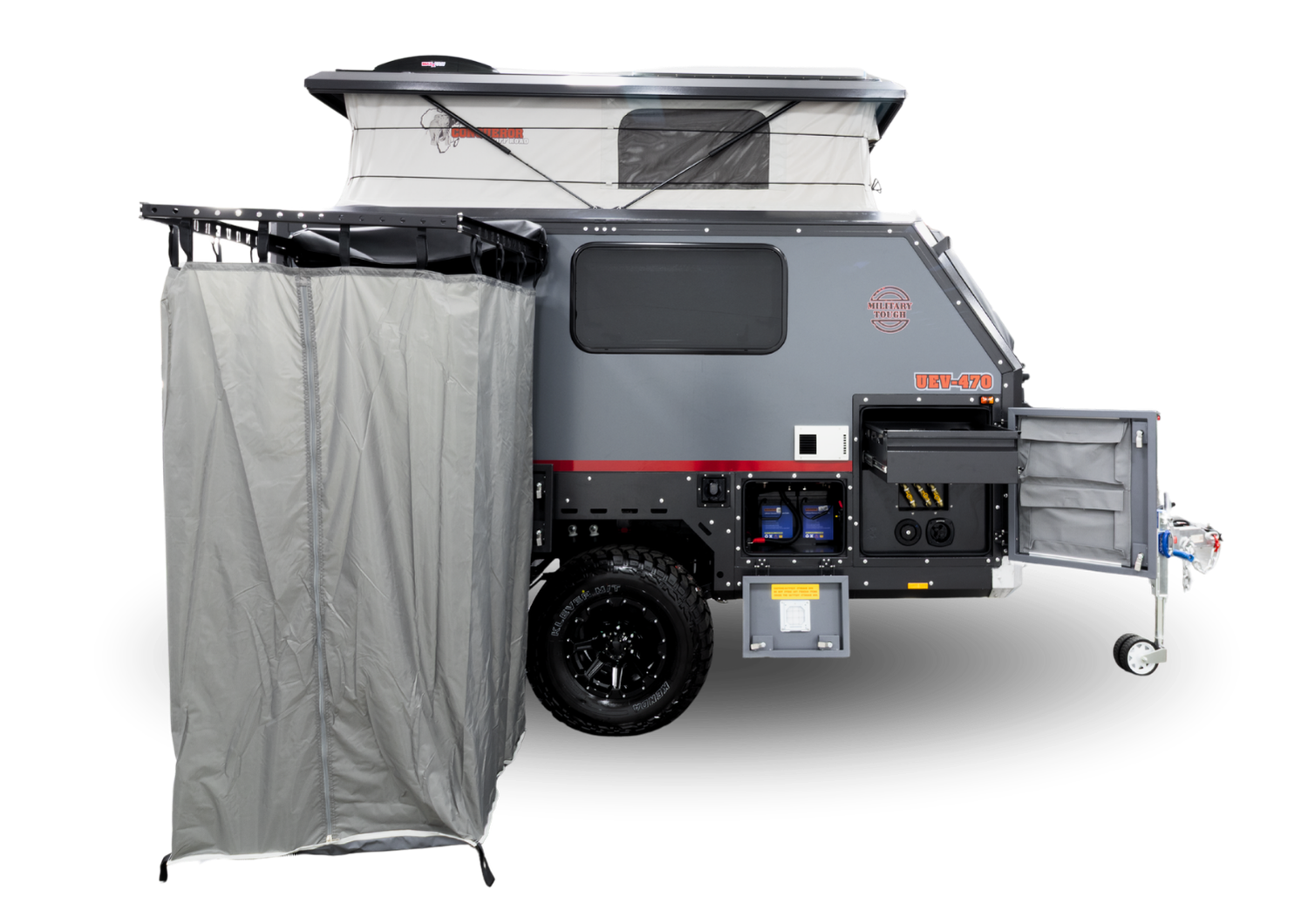

Internal + External

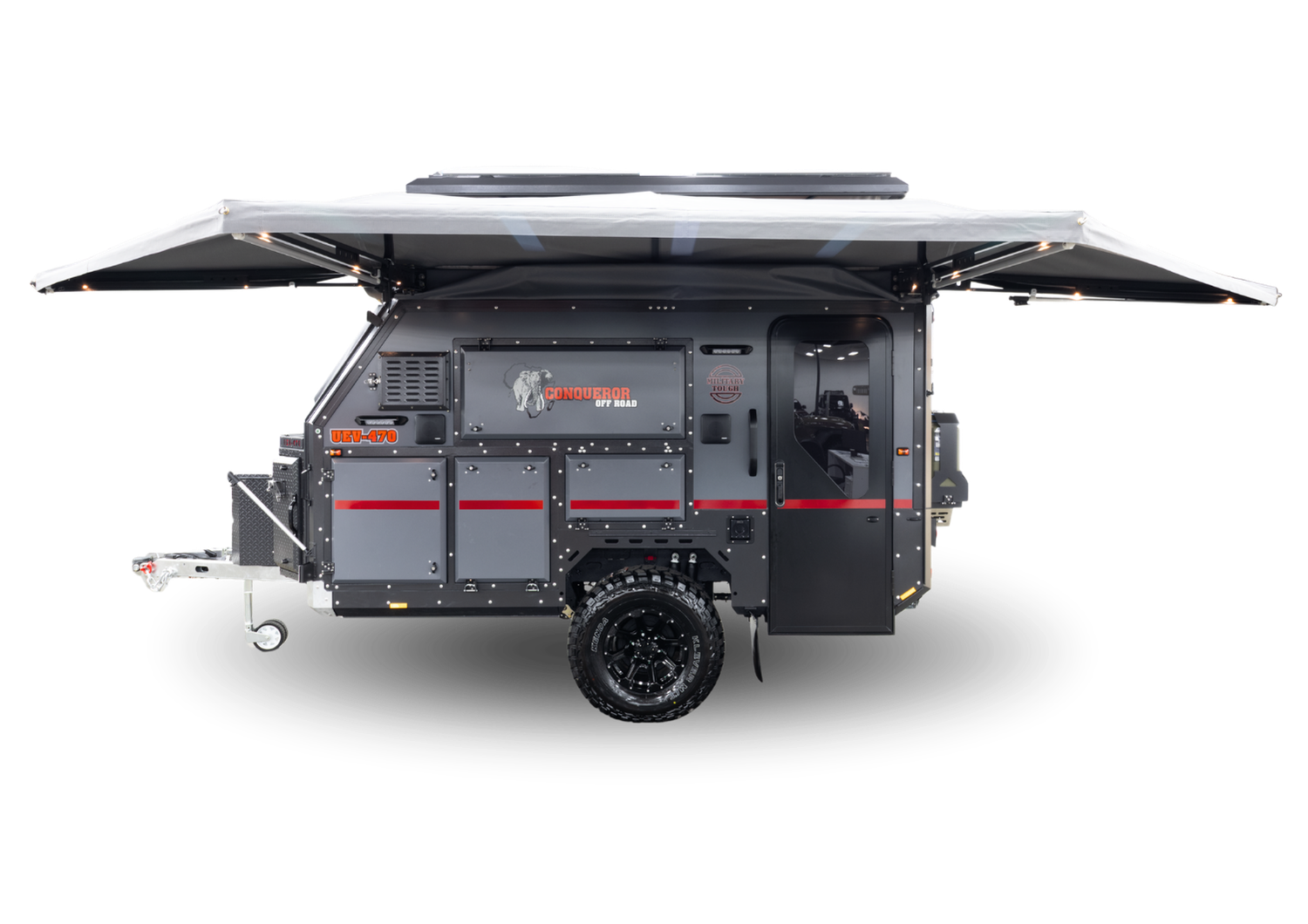

The UEV-470 is our newest compact hybrid caravan, designed for either a couple or a family of four - built tough for true off-road adventures, yet packed with comfort for the whole crew. Like the popular UEV-570, the UEV-470 delivers the same proven off-road engineering, build quality and comfort features, but in a more compact package. This smaller footprint makes it lighter, more nimble, and easier to tow, giving adventurers greater confidence on tight tracks, steep climbs and technical terrain while still enjoying the full UEV experience.
Premium features including a 5-layer aluminium composite construction with exoskeleton frame, independent airbag suspension with 140mm of adjustable travel, high-flow dust suppression system, lithium battery power with Redarc power management and Conqueror's cleverly purpose-built storage – all standard. The UEV-470 is ready for anything. Best of all, it sets up in minutes, making it the perfect family escape machine for off-grid exploration and unforgettable adventures.
FEATURES
CONSTRUCTION / CHASSIS
POWER / ELECTRICAL
WATER
STORAGE

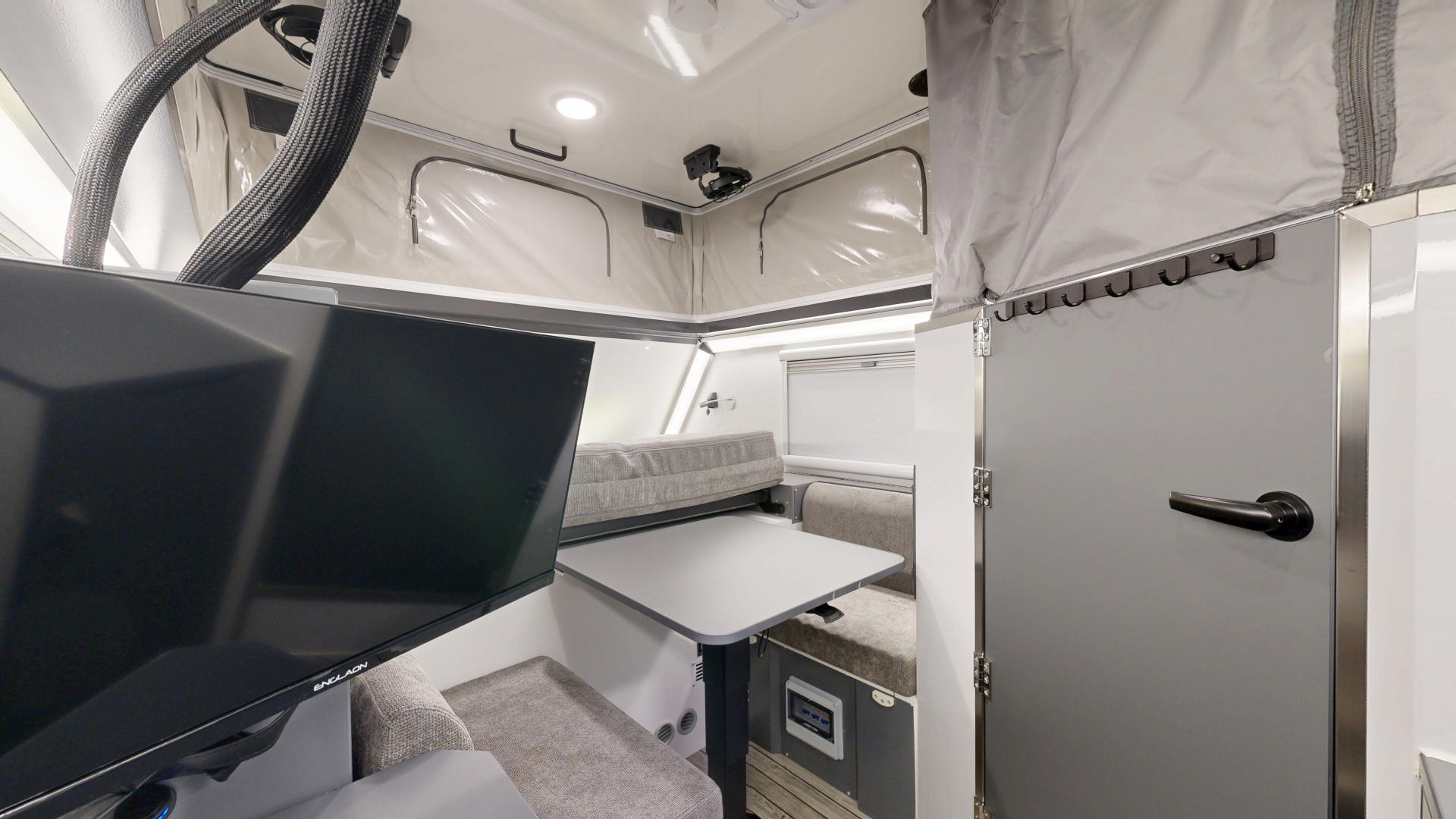

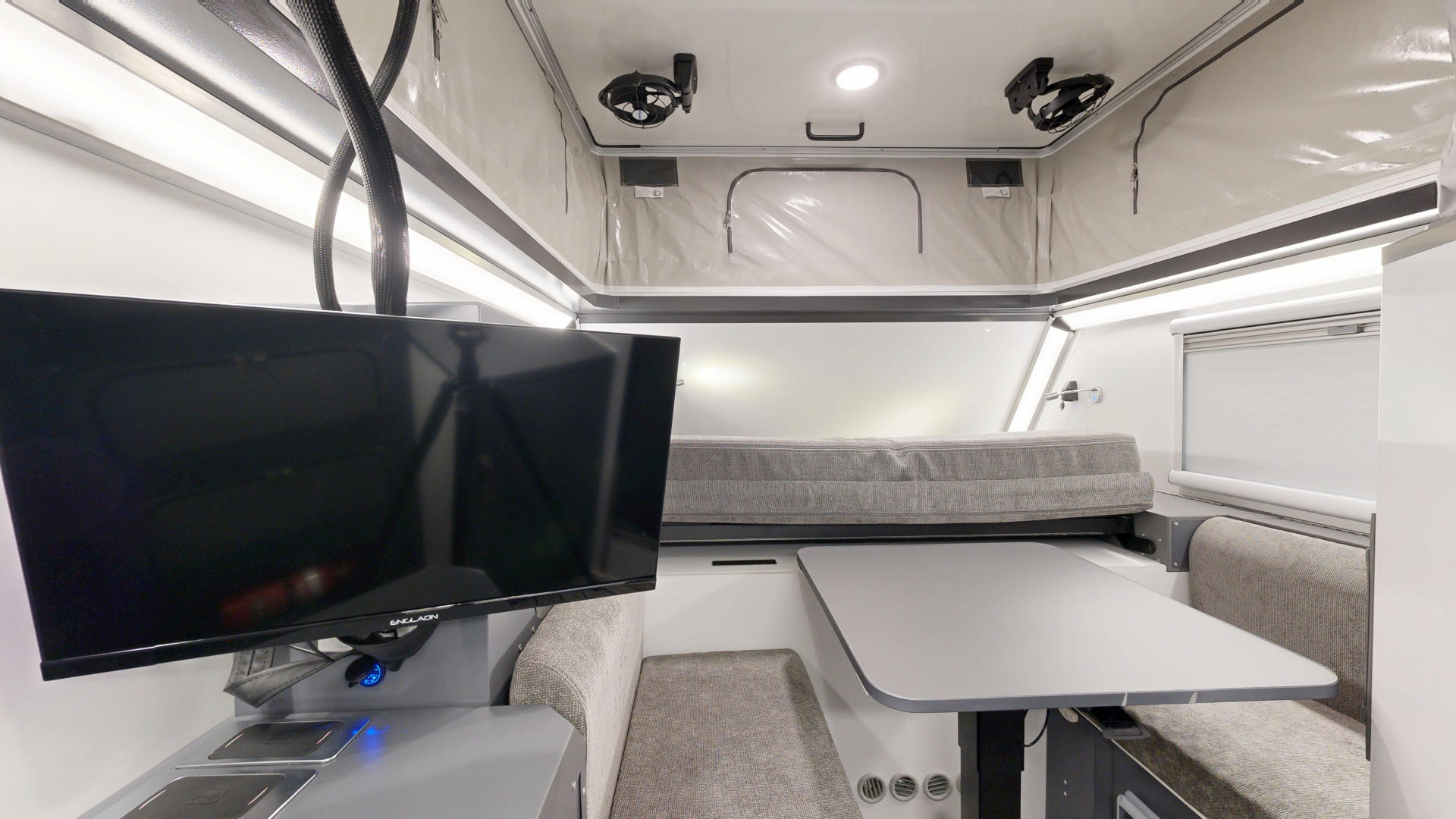

KITCHEN / DINING
BEDDING
ENTERTAINMENT

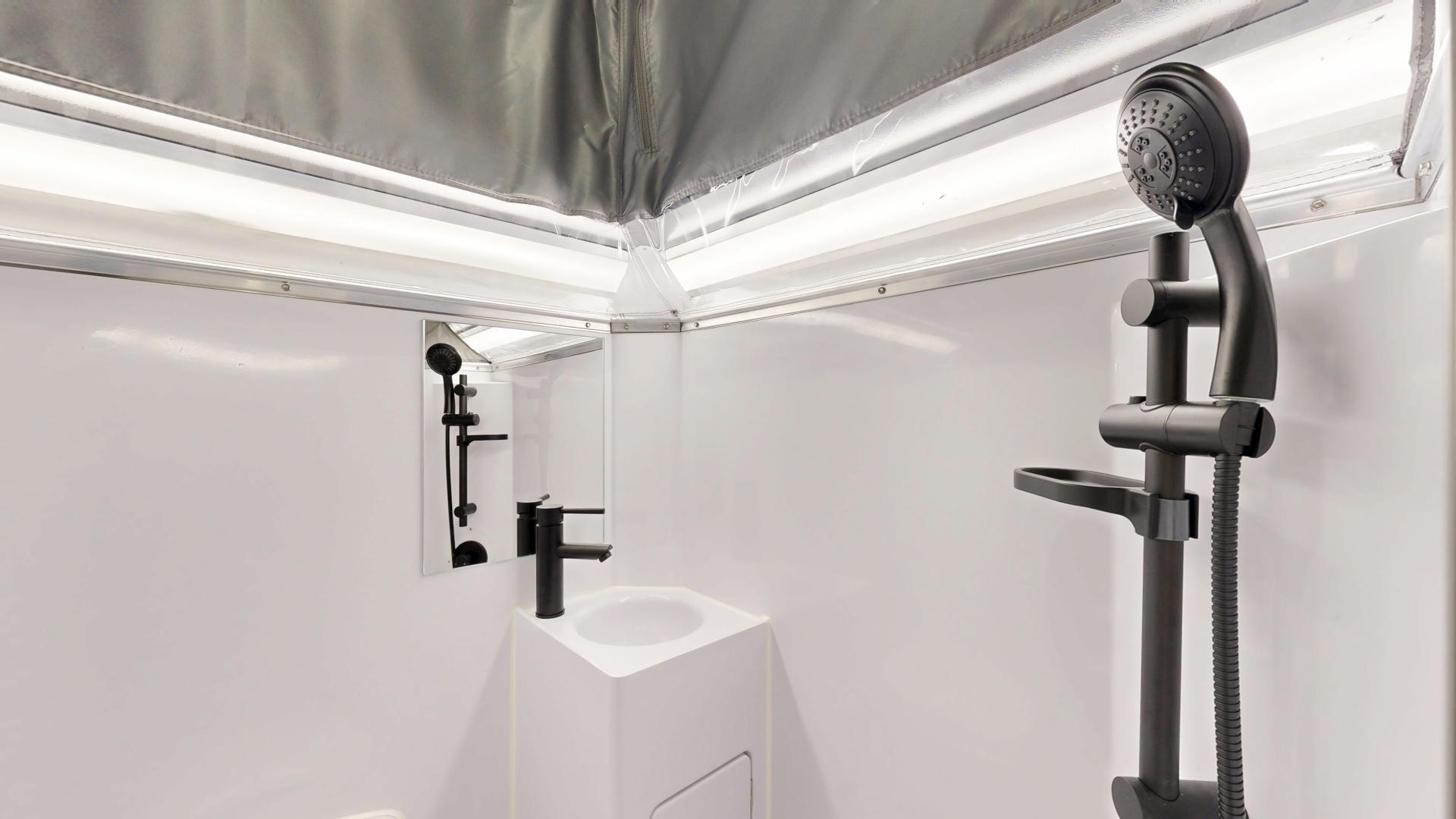

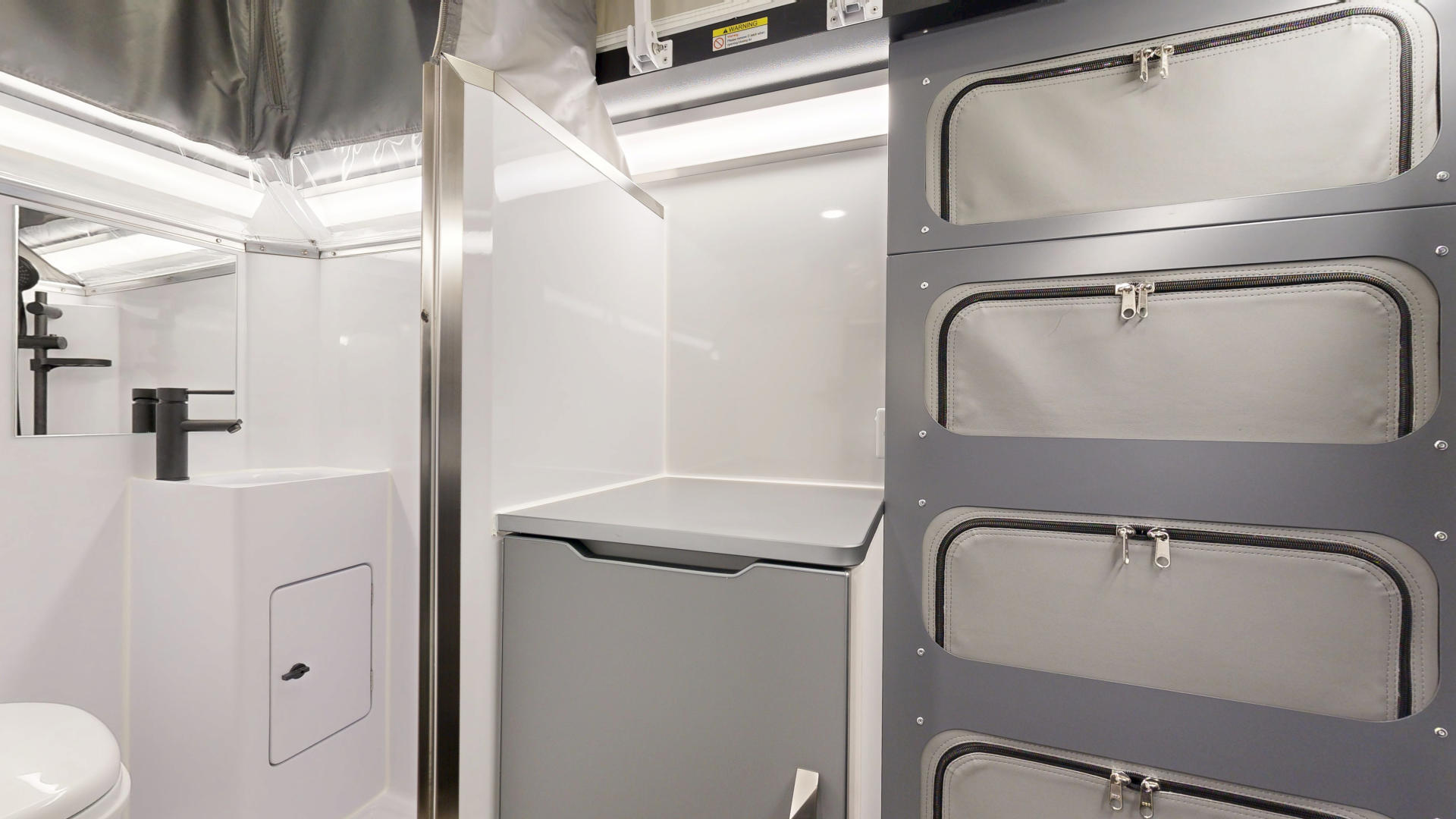

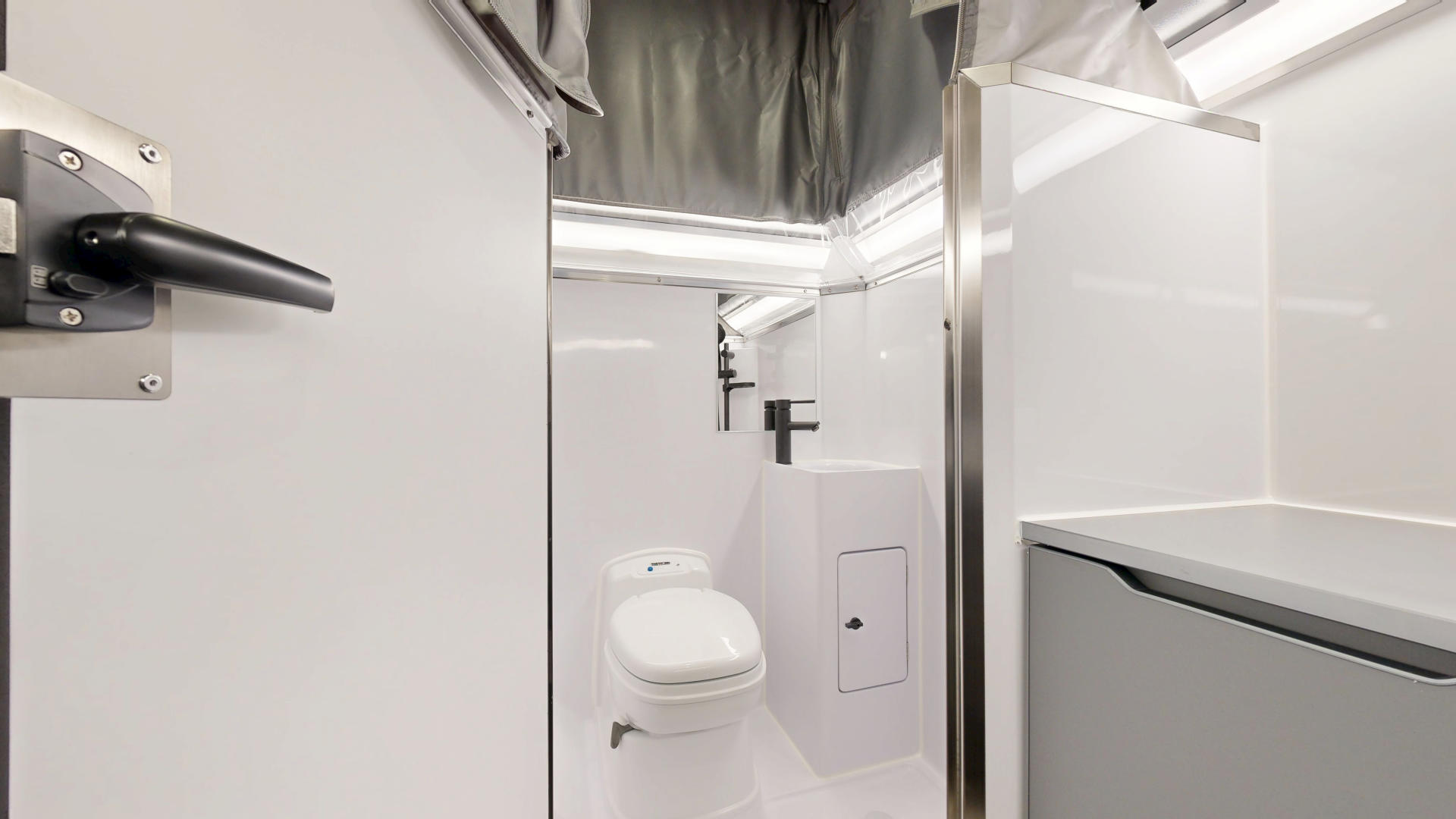

ENSUITE
PROTECTION
OTHER INCLUSIONS
OPTIONAL UPGRADES
SPECIFICATIONS
| Exterior Length | 5.05M |
| Exterior Width Body | 2.27M |
| Exterior Width Body + Awning | 2.40M |
| Exterior Height | 2.65M |
| Tare | 1850KG |
| Ball | 180KG |
| ATM | 2500KG |
| Suspension | Conqueror Independent Trailing Arm Airbag Suspension |
| Water Capacity | 120L Rear Water Tank, 120L Front Water Tank + 80L Grey Water Tank |
| Standard Solar | 400W Roof-Mounted (+ Portable Options) |
| Standard Battery | 200AH Baintech Lithium (Options up to 900AH) |
| AC Charger Output | 24A/14.7V (max) |
| Occupant Capacity | 2 - 4 |

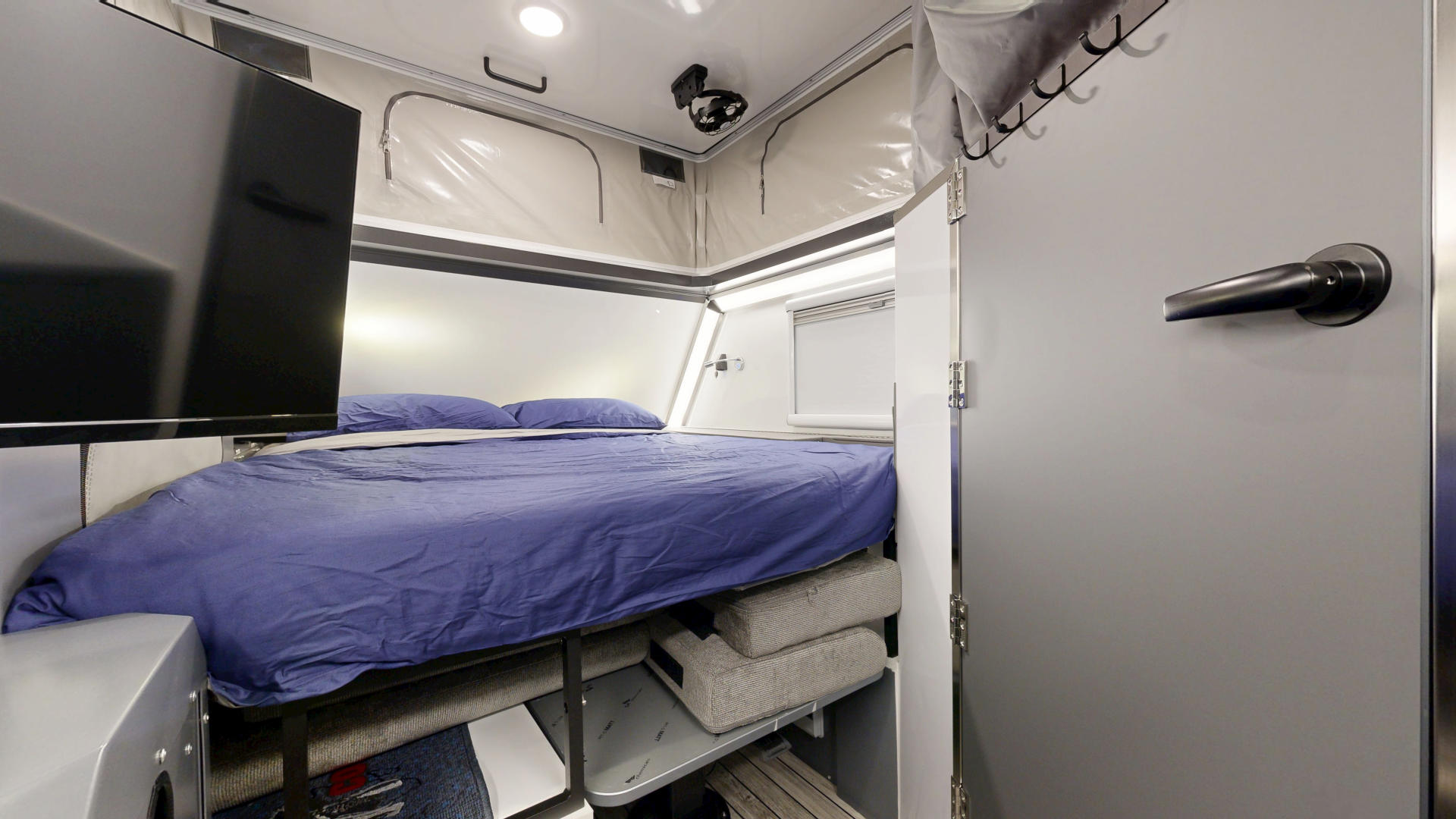

| Master Bed Size | Queen - 1960mm (L) x 1760mm (W) |

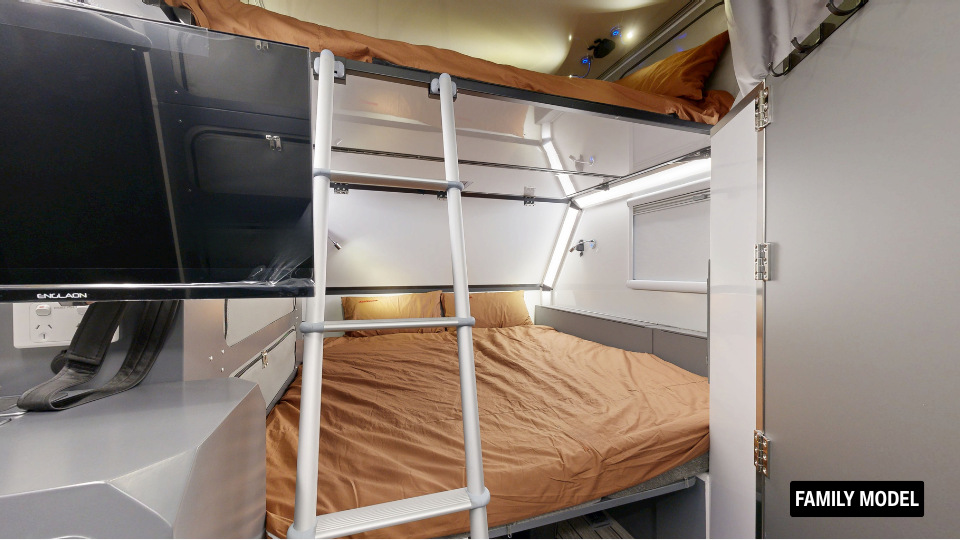

| Bunk Bed Size | Double |
Disclaimer: Specifications and inclusions are based on the current model at time of publishing and are subject to change without notice.

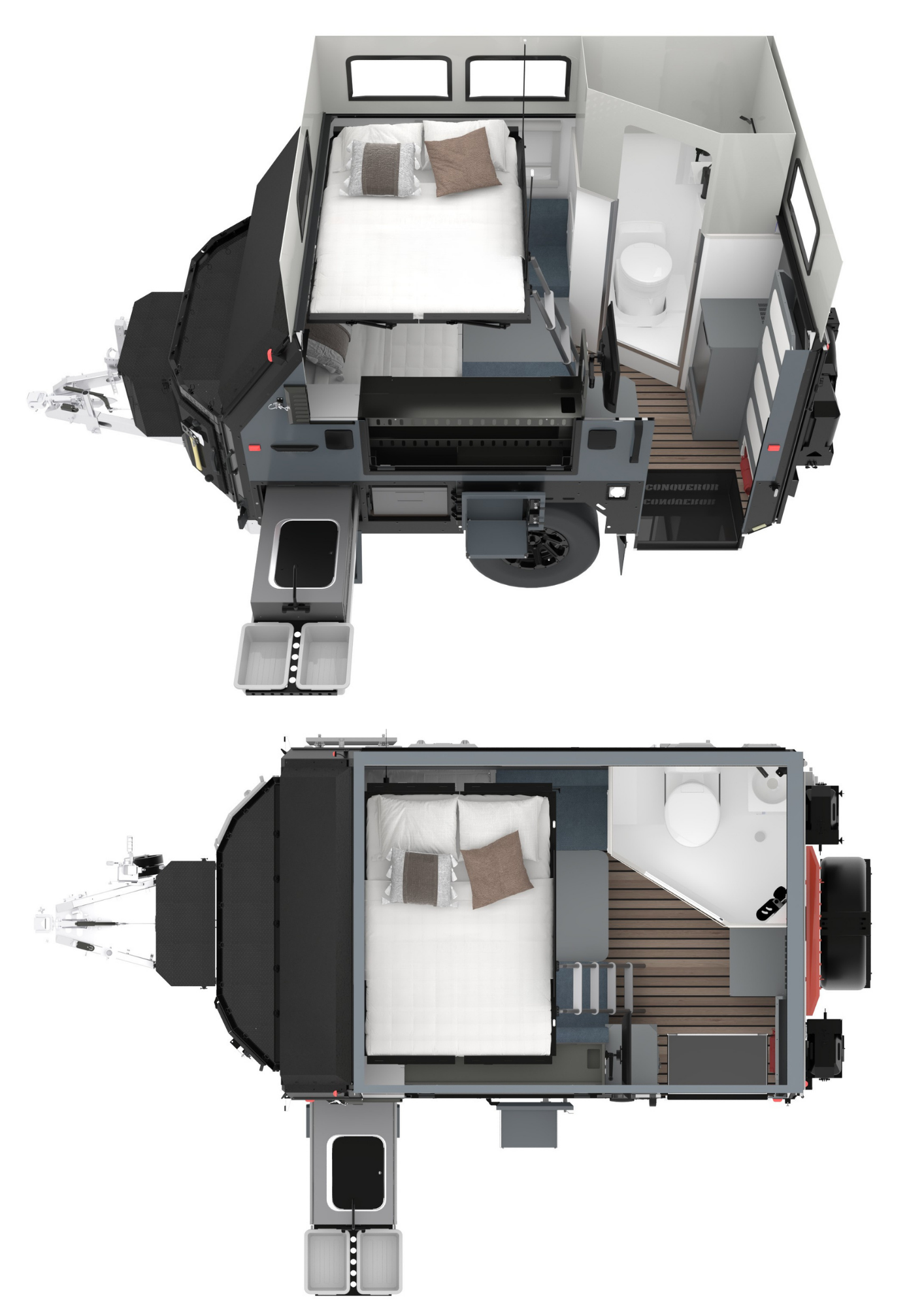

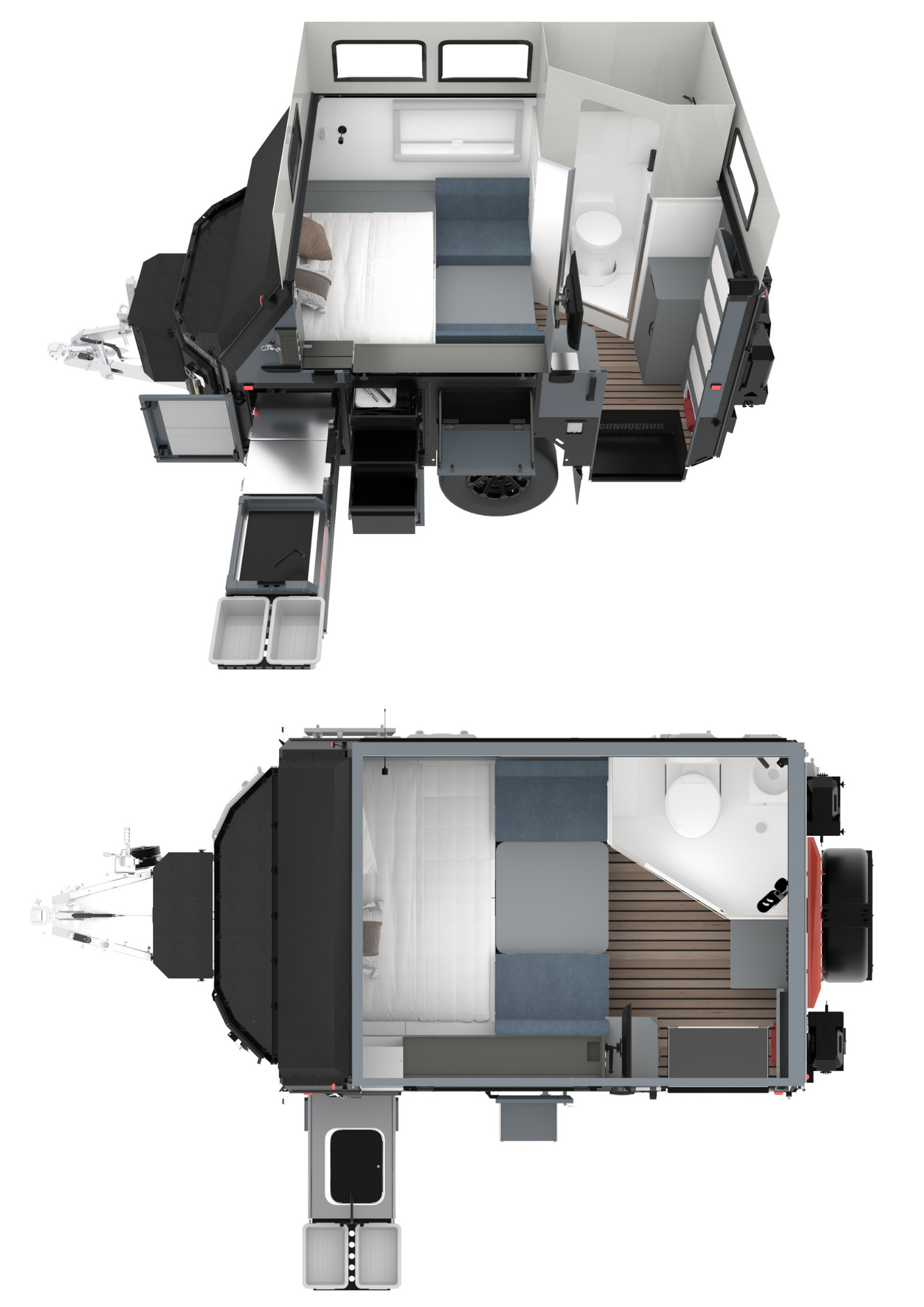

COUPLES FLOORPLAN

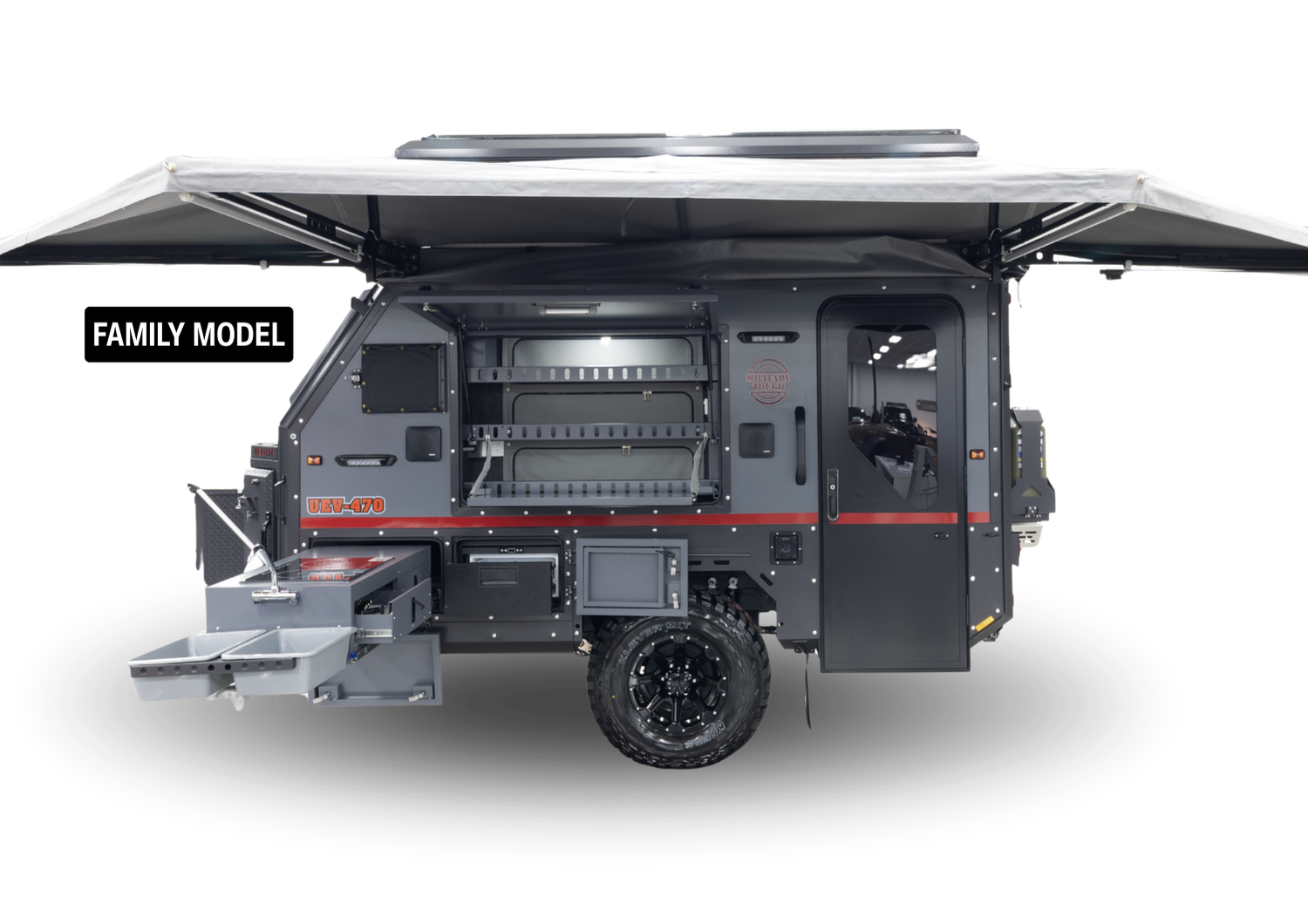

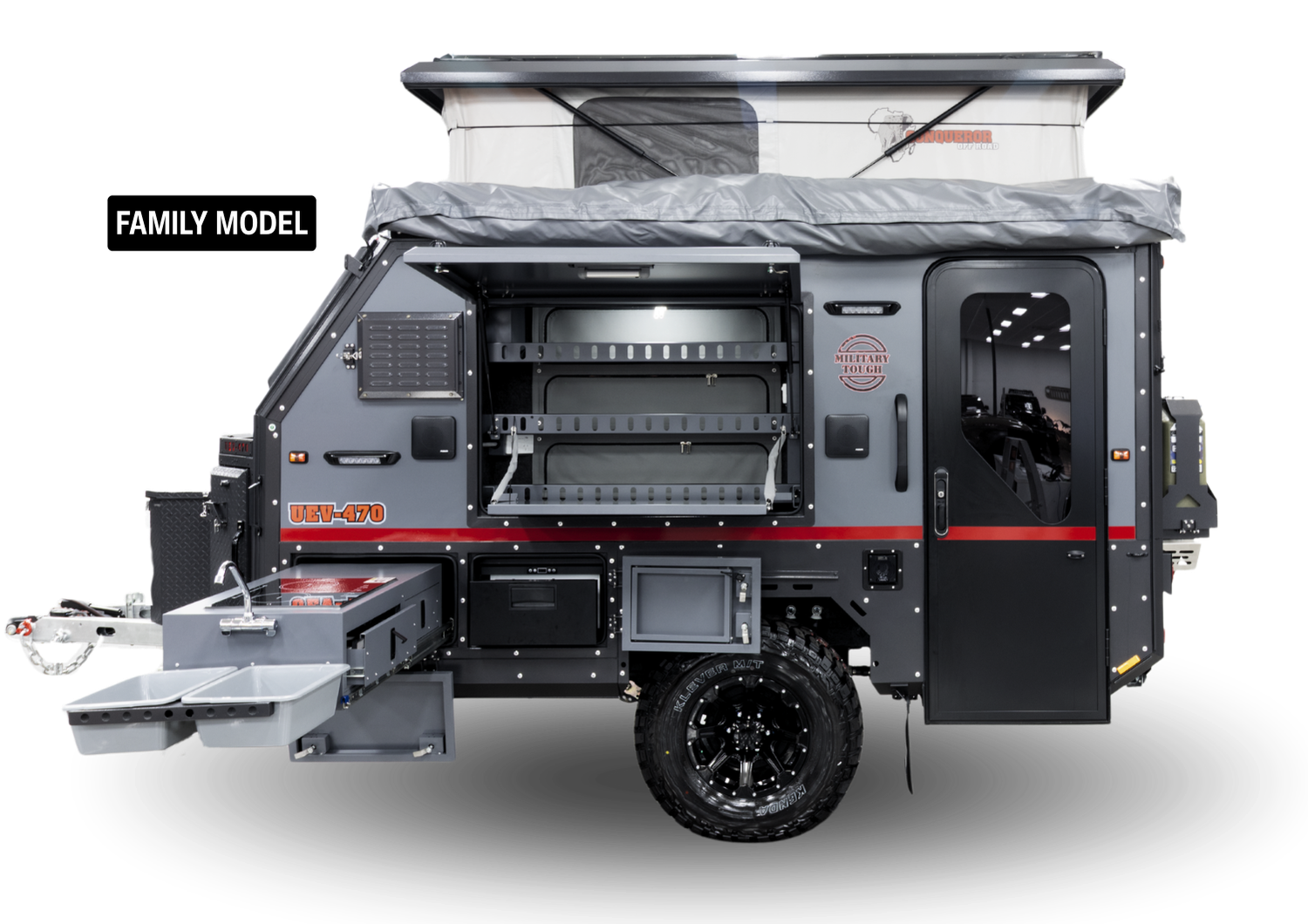

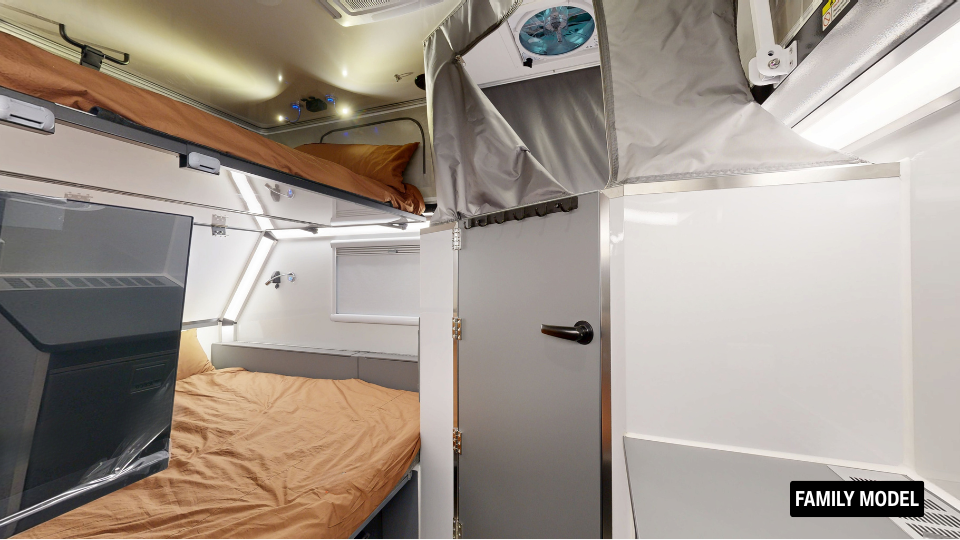

FAMILY FLOORPLAN
